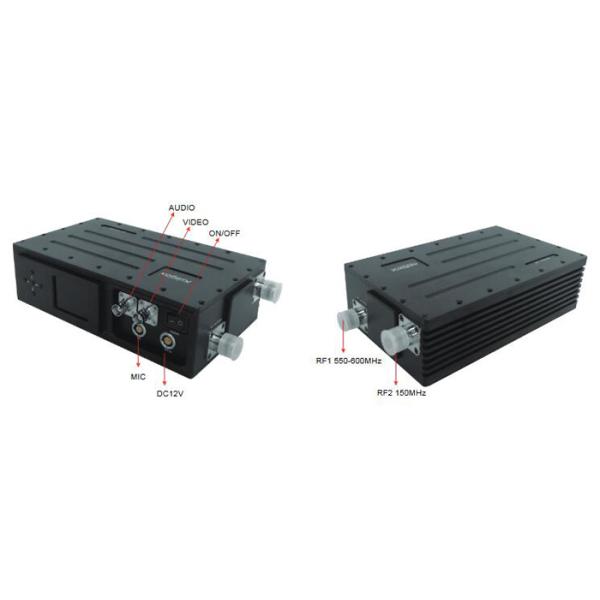

300Mhz - 4400Mhz COFDM Video Transmitter With Two Way Audio Communication

  • 1
  • 2
  • 3

Brand Name : Kimpok Technology / OEM

Model Number : KP-HDTA5W

Certification : No

Place of Origin : China

MOQ : 1 set

Price : negotiate

Payment Terms : T/T

Delivery Time : 3-7 days

Packaging Details : export standard packing

Frequency/Video : 300-900MHz

Video compression : H.264

Data encryption : AES 128 / ALLTECH Basic scrambling

RF Power : 2-5W adjustable

AV Interface : HDM-I/SDI; CVBS

Power : 12V DC

Contact Now

300Mhz ~ 4400Mhz COFDM Video Transmitter with Two-way Audio Communication

Description:

KP-HDTA5W is our powerful full HD av signals transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W rf power output adjustable.Support full HD 1080P(1080i) H.264 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system.


Specifications


Transmitter parameters:

Frequency 300-900MHz (can be customized)
RF output Power 2-5 Watt(adjustable)
Voltage DC12V/1.5A
Modulation COFDM
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
Bandwidth 2/2.5/4/8MHz(adjustable)
Transfer rate 2/4/6/8Mbps(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Input 1 line PAL/NTSC analog video
Audio Input Analog stereo left and right channels
AV interface HDM-I; HD-SDI; CVBS
Video compression H.264
Data encryption AES 128 / ALLTECH Basic scrambling
Flatness Full band≤2dB, 8MHz≤0.5dB
Carrier 2K,8K
Video Signal 1Vp-p@75Ω,NTSC/PAL adaptive
Resolution 1080P; 720P
RF Interface N(F)
Video Format PAL/NTSC(self-adaption)
Case Material Aluminum alloy, rainproof
Built-in battery 2300mA, 3Hrs
Work environment -30~70°
Distance 3km max NLOS manpack/100km LOS for air to ground
Size 180*100*60mm
Weight 1444g(net weight)

Receiver parameters:

Frequency

 300-900MHz (can be customized)
Receive sensitivity < -105dBm
RF Interface N(F)
Modulation COFDM
Power supply AC220V /DC12V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Output 1 line PAL/NTSC analog video
Revolution 1080P
Lines ofhorizontal 625 or 525 Line
Audio Output Analog stereo left and right channels
Data decryption AES128/ ALLTECH Basic scrambling
AV interface HDM-I; HD-SDI;CVBS
Work environment -30~70°
Size 430*310*65mm
Weight 1.5kg

300Mhz - 4400Mhz COFDM Video Transmitter With Two Way Audio Communication

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
