Stable Image Transmission KP-500TX2W Analog Video Transmitter for Complex Environments

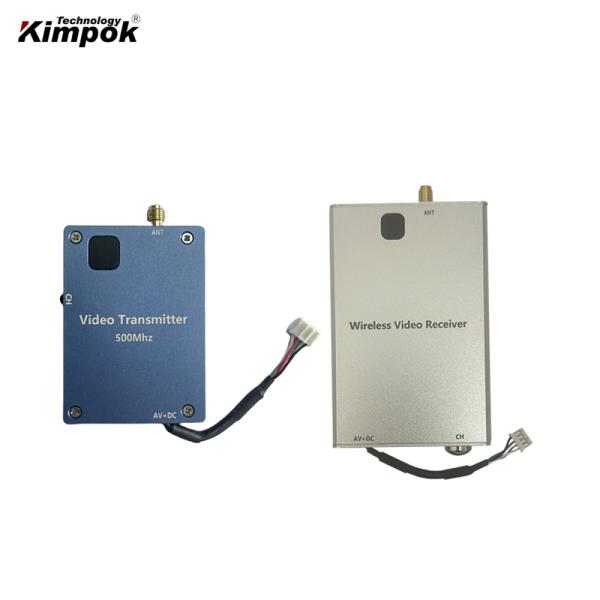

KP-500 TX 2W A New Wireless Video Transmitter for Clear and Stable Image Transmission

300~900Mhz 2W Wireless AV Transmitter and Receiver

Description:

KP-500 TX 2W wireless video transmission equipment is specially designed for high-quality video transmission applications, and its features and advantages are as follows:

FM modulation and new frequency band:

Frequency modulation is adopted to effectively avoid the same-frequency interference in common frequency bands such as 1.2 GHz, 1.5 GHz and 2.4 GHz.

The use of new frequency bands ensures stable and clear video transmission effect in various complex environments.

High sensitivity receiver:

The sensitivity of the receiver reaches -85 dBm, which can capture weak signals and ensure the continuity and quality of video transmission. Long-distance transmission capacity:

Under ideal conditions (such as urban open areas), the ground high-gain antenna can transmit signals to 1~2 kilometers away. Under the condition of air-to-ground line of sight, the launch distance can reach about 20 kilometers. However, the actual launch distance is affected by factors such as environment, weather and obstacles.

Durability and heat dissipation design:

The transmitter is made of special metal to ensure the durability of long-term work. Equipped with high-speed fan to improve heat dissipation efficiency and maintain the stable performance of the equipment under long-term continuous operation.

Universal AV interface and its wide applicability:

Support universal AV interface, and easily connect cameras, VCDs, DVD players and other devices. It is suitable for various application scenarios such as wireless CCTV transmitters and receivers, FPV systems, unmanned aerial vehicles, airplane models/helicopters, and unmanned vehicles.

Customized data transmission function:

According to specific requirements, the data transmission function can be customized to provide flexible solution 1. KP-500 TX 2W wireless video transmission equipment has become an ideal choice for high-quality video transmission applications because of its stable performance, clear transmission effect and wide applicability.

VTX Specification:

VRX Specification:

Antenna must be connected before connect to power, otherwise it will be easy to burned-out!

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
